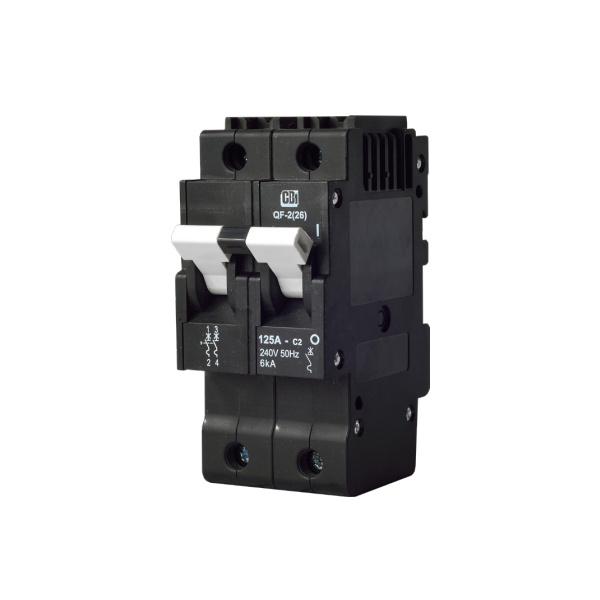

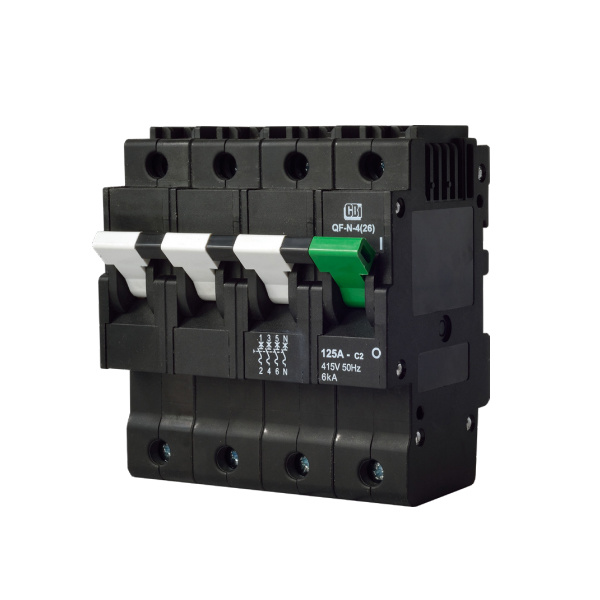

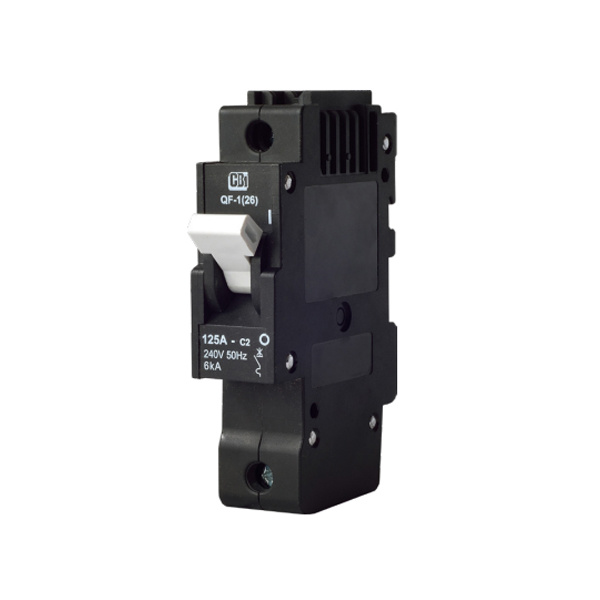

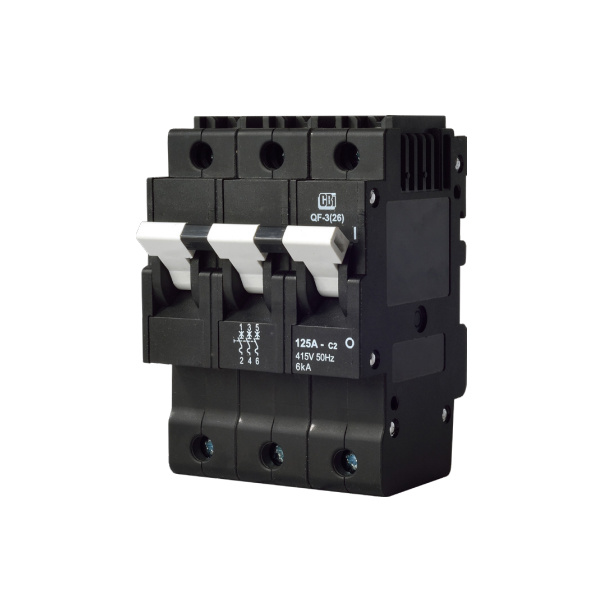

QF(26)HR - Series Miniature Circuit Breakers
所属分类：
导轨式安装断路器（MCB）
Features
•AC circuit breaker
•Hydraulic-magnetic technology
•100% rated current capability, independent of ambient temperature
•One, two, three pole, 1+N and 3+N (VDE)
•VC 8036 (SANS 556-1) and CE compliant
•VDE and EAC approved
•Ratings 60 A to 100 A (UL 489)
•Ratings 70 A to 125 A (IEC 60947-2)
•Available in various currents and time delays
•Precision tripping characteristics
•Can be switched immediately after tripping
•Dual (DIN & mini rail) mount, 57 mm front escutcheon(Black)
•Suitable to use for electrical isolation
Applications
•AC branch circuit protection (DIN / EN 60947-2)
•Switch disconnector (DIN / EN 60947-3, UL 508)
•Telecom / datacom equipment
•Lighting control
•UPS equipment
•Mobile power generation equipment
•Railway signalling equipment
•Residential equipment
•Industrial equipment
Optional Accessories
•Handle lock - SAAP001
•Surface mounting clips - 2096001
•Escutcheon blank - SFEB000
•Safety blank - SAEB000
