QZ - Series Miniature Circuit Breakers
所属分类：
导轨式安装断路器（MCB）
Features
•AC circuit breaker
•Hydraulic-magnetic technology
•100% rating capability, independent of ambient temperature
•One, two and three pole (UL). One, two, three pole and 1+N, 3+N (VDE).
•DIN / EN, EAC approved, CE certified
•UL 1077 recognised (Supplementary protector)
•Ratings 0.1 A to 60 A - UL 1077
•Optional shunt trip (Approvals pending)
•Wide range of time delays and operating currents
•Precision tripping characteristics
•Ultra compact – 13 mm wide module
•Trip indication with mid-trip handle
•Can be switched on immediately after tripping

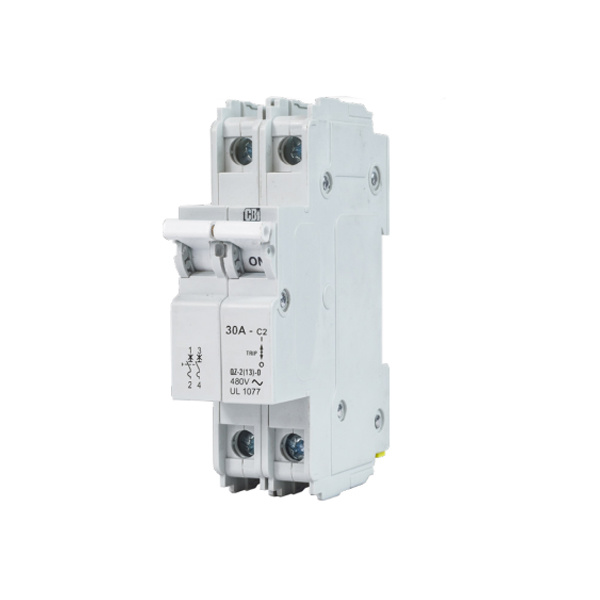

•DIN mount product in grey shells

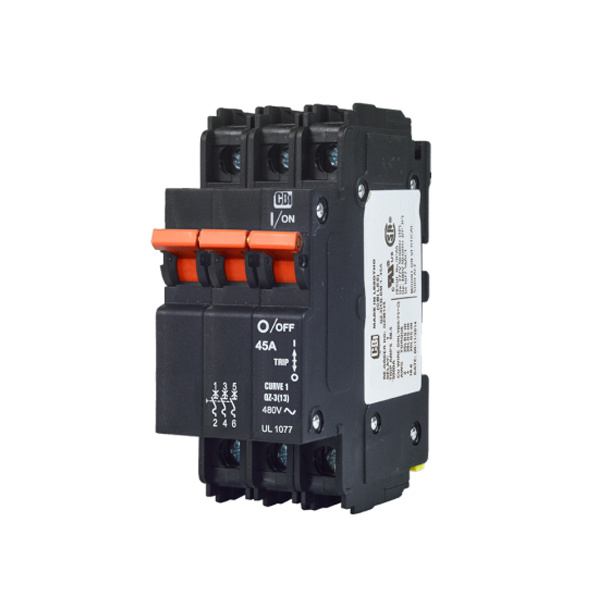

•Dual (DIN and mini rail) mount product in black shells
Auxiliary Switch, Trip Alarm & Combo:Features
•Factory fitted
•Attached to right hand side of circuit breaker
•Compact 6.5 mm width
•Auxiliary switch (DIN and Dual mount)
•Auxiliary switch + trip alarm (Dual mount only)
•Trip alarm (Dual mount only)
•UL 489 & IEC 60947-5-1
110 Vdc, 0.5 A; 240 Vac, 6A
Applications
•AC branch circuit protection (DIN / EN 60947-2)
•Supplementary protection (UL 1077)
•Telecom / datacom equipment
•Lighting control
•UPS equipment
•Mobile power generation equipment
Optional Accessories
•Handle lock - QFAP001
•Surface mounting clips - SAAX000
•57 mm escutcheon blank (Dual mount only) - 2356208
•57 mm safety blank (Dual mount only) - SAEB000
