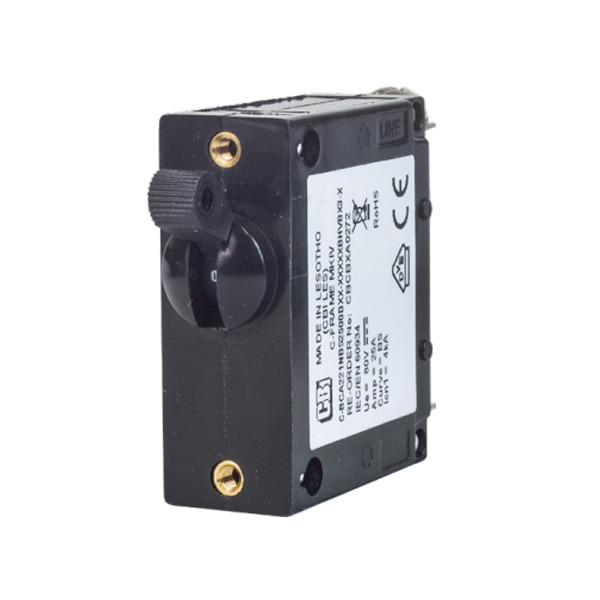

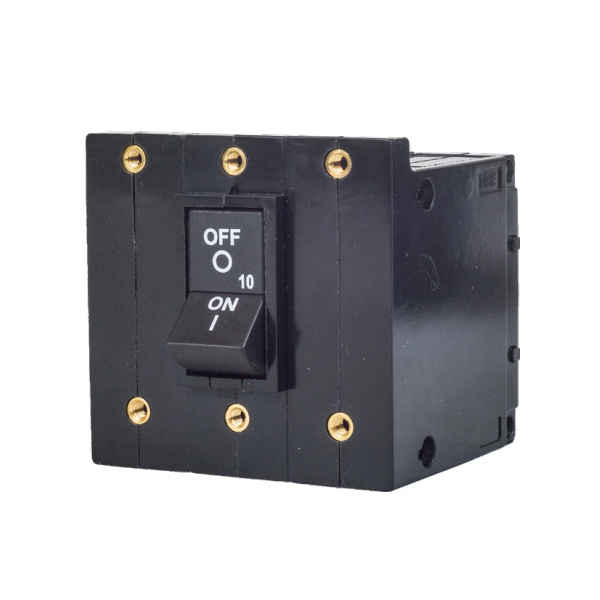

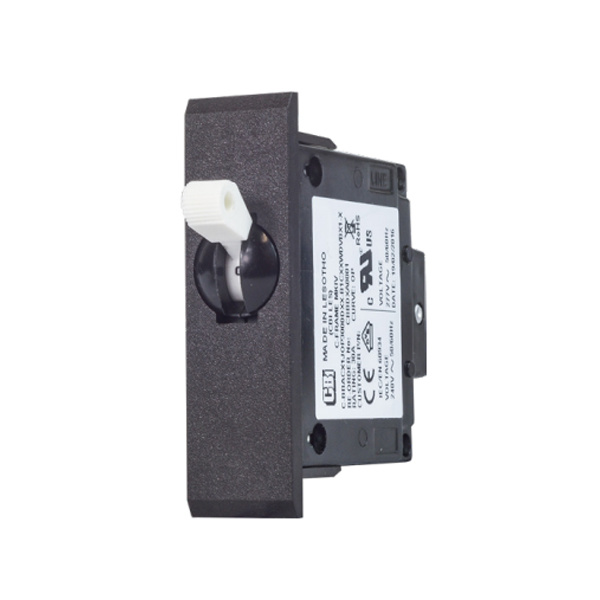

C-Frame MKIV - Series Circuit Breakers
所属分类：
面板安装断路器(CBE设备用断路器)
Features
• AC and DC circuit breaker
• Hydraulic-magnetic technology
• 100% rating capability independent of ambient temperature
• Up to four poles
• VDE, EAC and CCC approved, CE certified
• UL compliant (Listed / recognised)
• Ratings 0.1 A to 50 A (Specific certifications)
• Precision tripping characteristics
• Wide range of circuits, mountings, terminations and time delays
• Two colour handle indication (Two tone flush rocker)
• Optional auxiliary switch and trip alarm
Application
• Telecom DC Power distribution
• UPS equipment
• Mobile power generation equipment
• Alternative energy equipment
• Lighting control
Approvals
The C-Frame MKIV is CE certified and carries various approvals such as VDE, cURus, EAC and CCC. It is also recognised to UL 1077, UL 1500 and UL 508, and listed to UL 489 and UL 489A.
